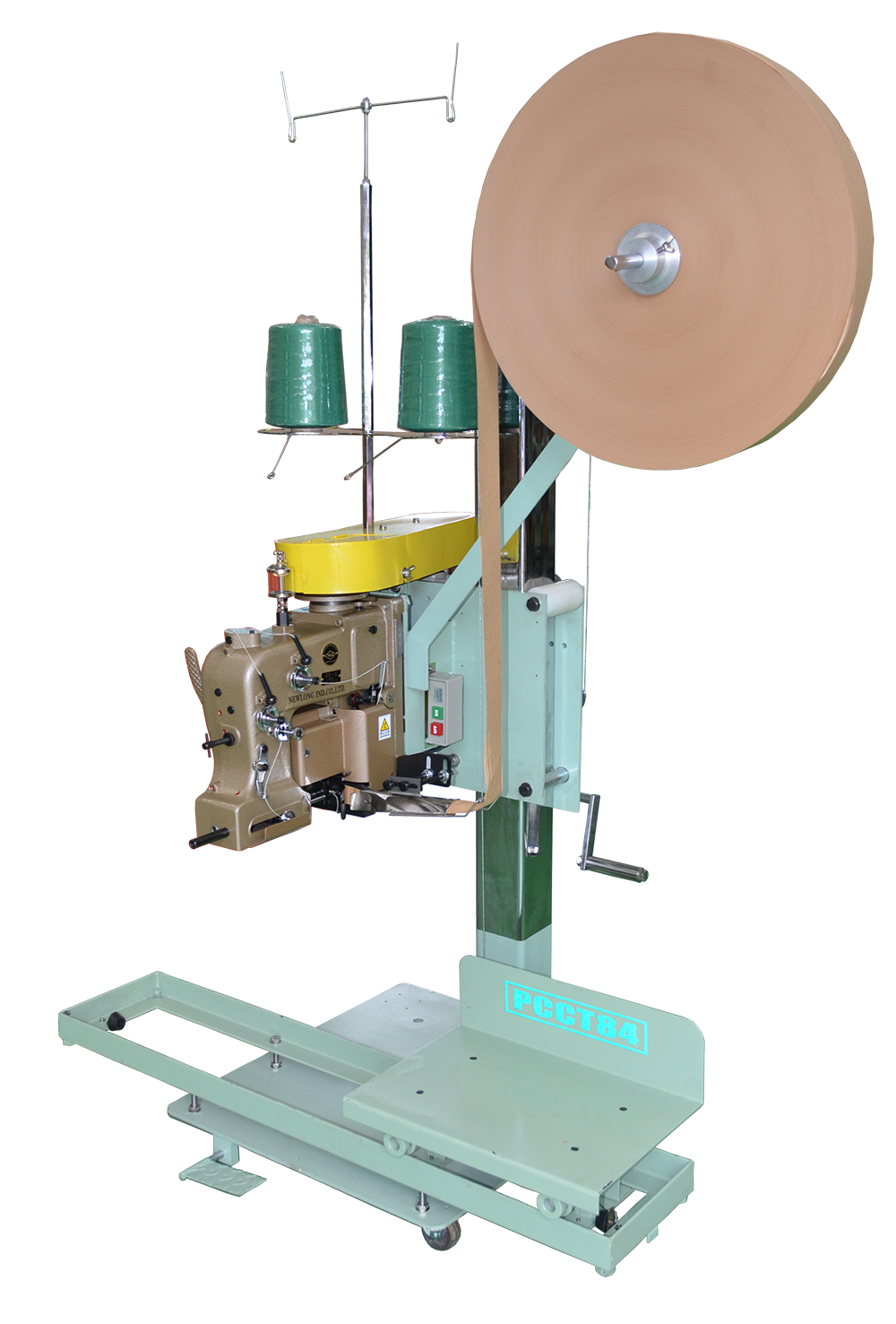

แท่นจักร B-2(DS-C)


  • The sewing head can be easily moved up and down according to the bag height.
  • The crepe tape unit can be installed for automatic setting of tape and provides beautiful finish.
  • The low position of the carrier table allows easy loading and unloading of bags.
  • With completion of sewing, the carrier table automatically returns to the original position.
  • Provision of casters allows easy movement of the machine.
Specifications Features
Dimension 1180mm long x 830mm wide x 2200mm high
Power required 200W, Clutch motor, 4P (single phase or three phase motor)
Size of carrier table 455mm long x 328mm wide
Sewing height 290mm – 750mm (table surface to needle center)
Net weight 152kg
Sewing Head DS-2II / DS-C
